SiC Ceramic Slurry Pumps
The SZJH slurry pump boasts outstanding performance. It has an abrasion resistance four times that of high - chrome materials. It exhibits excellent corrosion resistance, being stable in environments with a pH range of 0 to 12 and non - reactive with any acids or alkalis. Additionally, it can resist the impact of large solids effectively. Compared with metal pumps, its service life is 4 to 8 times longer. Moreover, it helps achieve energy savings and cost reduction by 20% to 40%.
Key word:
Slurry Pumps
Gravel Sand Pumps
E-mail:
Products detail
Performance Curve
Features
- Utilizes mature SiC ceramic material with high hardness and stable molecular structure, featuring corrosion resistance, wear resistance, and high - temperature resistance.
- ndependently developed with modern composite ceramic and non - metallic casting technologies.
- Available in 27% chrome alloy hard metal, thick rubber, and polyurethane pump linings, which are interchangeable.
- Serves as a horizontal single - stage single - suction centrifugal slurry pump, with axial suction, radial discharge, and bracket support.
- Bearings can be lubricated with grease or thin oil.
- Reliable shaft seals, including secondary impeller seal, packing seal, and mechanical seal, are provided.
- Multi - purpose design reduces inventory requirements and enables component interchangeability.
- Drive types: Different connection methods (ZVZ, DC, CV, CRZ) with the motor are available for selection, meeting the requirements of different installation conditions as well as varying capacity and head.

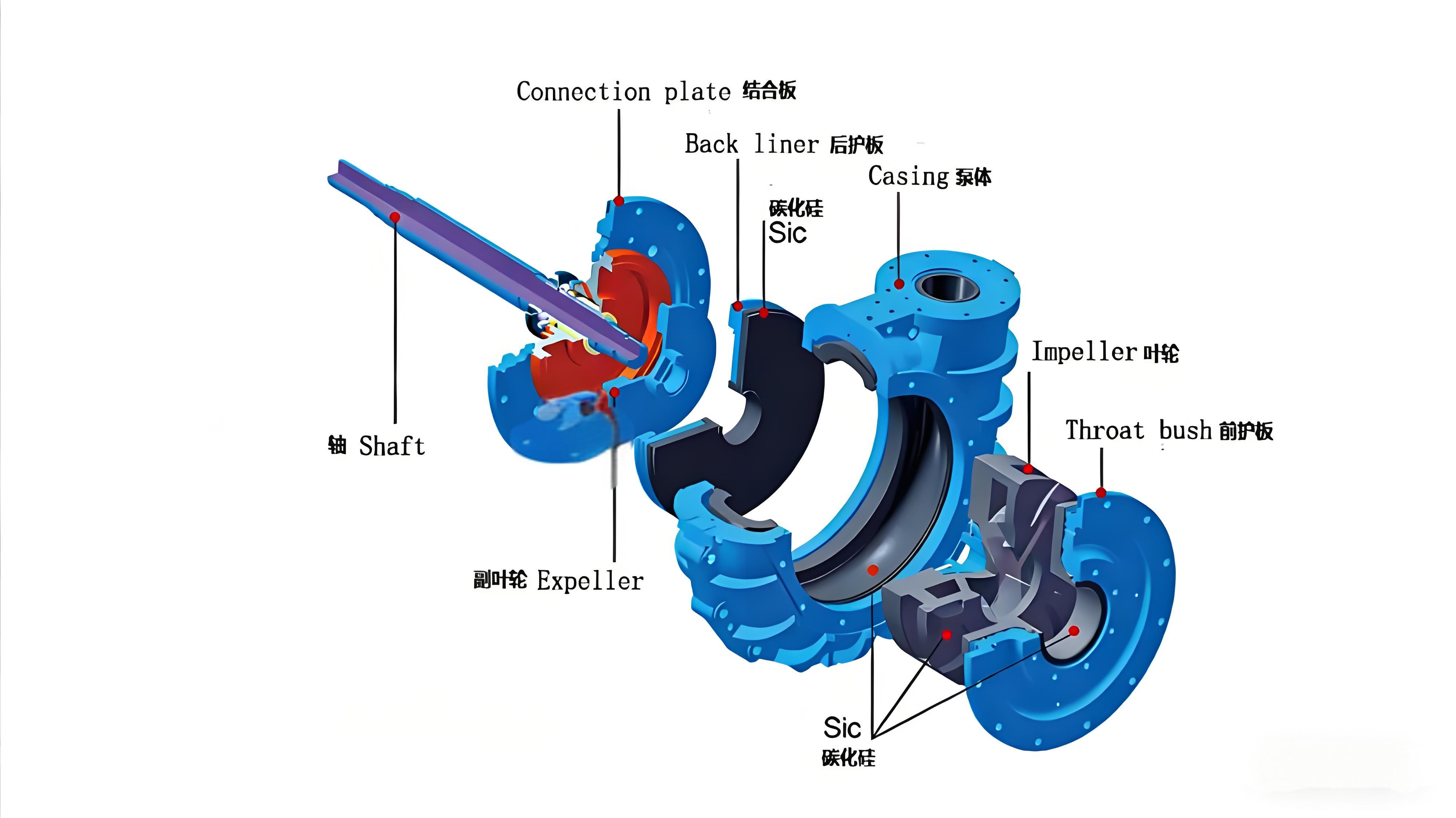

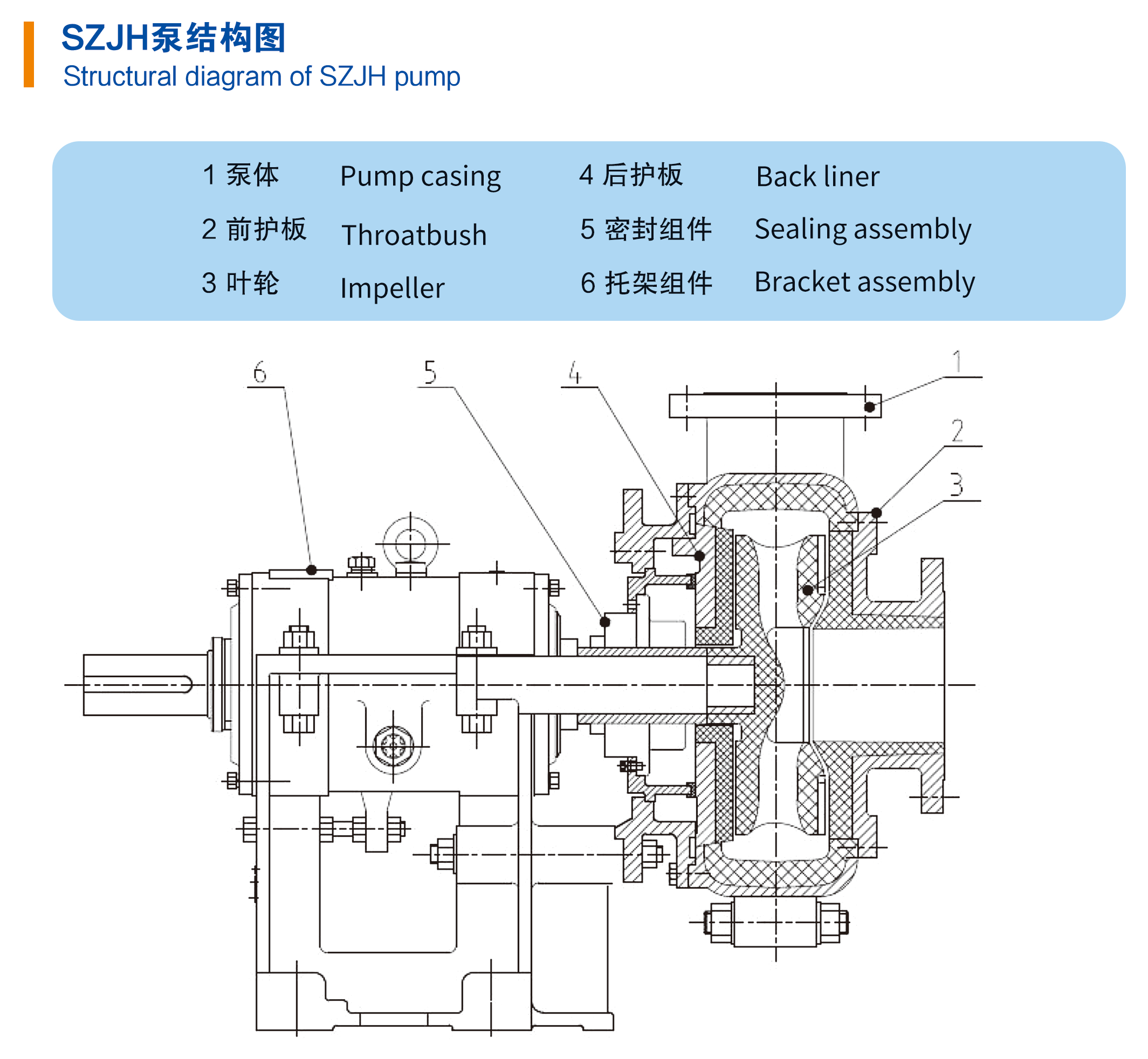

Structure Features

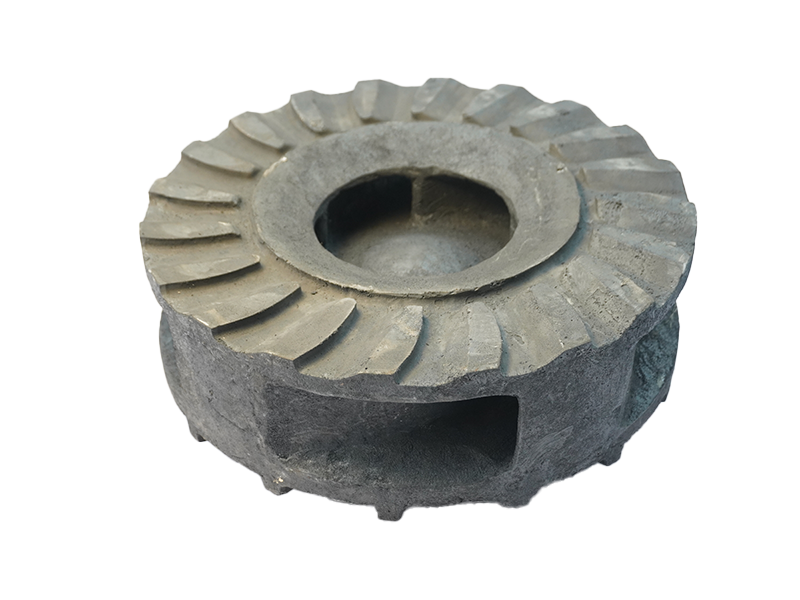

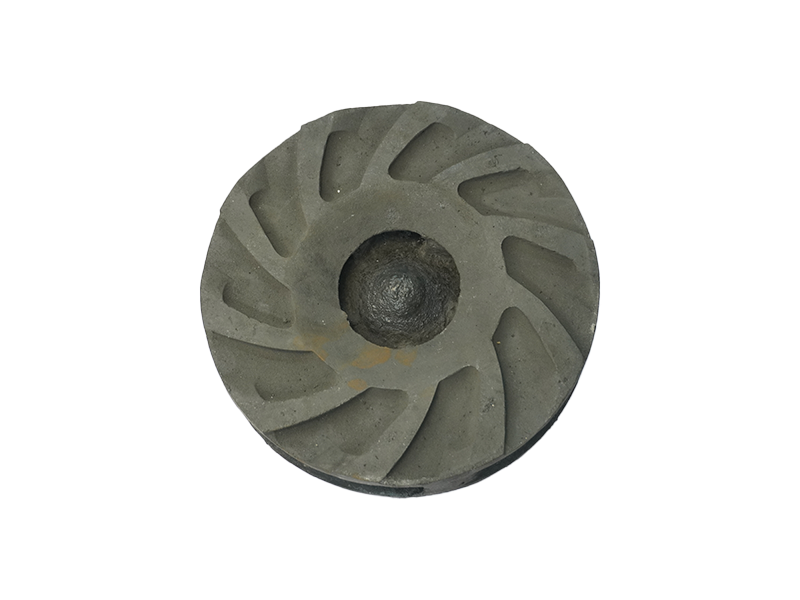

ceramic accessories
ceramic accessories
ceramic accessories
ceramic accessories
ceramic accessories
Applications
|
Application Industry |
Product Equipment |
|
Coal - fired Power Generation |
Desulfurization circulation pump, mill circulation pump, cyclone feed pump, mixing pump, limestone slurry pump, gypsum discharge pump, accident pump, pit pump |
|
Grinding and Beneficiation |
Feeding pump for cyclone separator under the mill, tailings conveying pump, flotation pump, concentrate pump |
|
Steel Smelting |
Slurry pumps for blast furnace slag flushing water, wet and ammonia desulfurization pumps for sintering machines |
|
Chemical Industry |
Strong corrosive process pumps for salt chemical, alkali chemical, phosphorus chemical, etc |
Pump Display
why choose me?
Independent Casting・Traceable Source
Sunlike Pumps is a leading Chinese brand specializing in slurry pumps and filter press feed pumps. All products are manufactured through the company’s own casting and production lines, ensuring complete quality control from the source.
Dual-Plant Synergy・Solid Strength
Sunlike operates two manufacturing campuses: one located in Xingtang Industrial Park, Shijiazhuang, Hebei Province, and the other in Anzhou Industrial Park, Xiong’an New Area, Baoding, Hebei Province, with a total area of 50,000 square meters.
Trusted by Top Brands・Partner with Strength
Sunlike pumps are long-term supporting equipment for well-known Chinese filter press manufacturers such as Jingjin, Dazhang, and Bright. The company is also a trusted partner of major industrial enterprises including BYD and Haiwang Hydrocyclone.
Service Advantage
As a company specializing in the production of slurry pumps, sewage pumps, filter press feed pumps and environmentally friendly greening equipment, SUNLIKE meets the diverse needs of customers.
One year warranty for the whole machine
Advanced equipment and technology
Timely supply from overseas warehouses
24-hour online problem solving
Common Problem
1. What is the main use of slurry pump?
Slurry pump is mainly used to transport liquid containing solid particles, widely used in mining, metallurgy, coal, electric power, chemical, building materials and environmental protection and other industries.
2. What is the working principle of the slurry pump?
The slurry pump inhales the slurry from the suction inlet of the pump body through the centrifugal force generated by the rotation of the impeller, and the slurry is discharged from the discharge outlet of the pump body through the diversion of the pump shell.
3. How to choose the right slurry pump?
The selection of slurry pump needs to consider the following factors:
The physical and chemical properties of the medium, such as temperature, viscosity, corrosion, etc
The size and concentration of solid particles
Required flow and head
Pump material and structure
4. What are the precautions for the maintenance and maintenance of slurry pump?
Check the wear condition of impeller, pump housing and shaft seal regularly, and replace the worn parts in time
Keep pump body and pipe clean to prevent impurities from entering pump body
Check and replace lubricating oil regularly to ensure the normal operation of bearings
Check the coupling of the motor and pump regularly to ensure that the connection is secure
5. What are the common faults and treatment methods of slurry pump?
The pump does not produce pulp or insufficient pulp: check whether the suction inlet is blocked, whether there is air in the pump body, and whether the impeller is worn.
Pump body vibration or noise: check whether the pump shaft is bent, the impeller is balanced, and the bearing is damaged.
Seal failure, leakage: check whether the seal wear, replace the seal in time.
